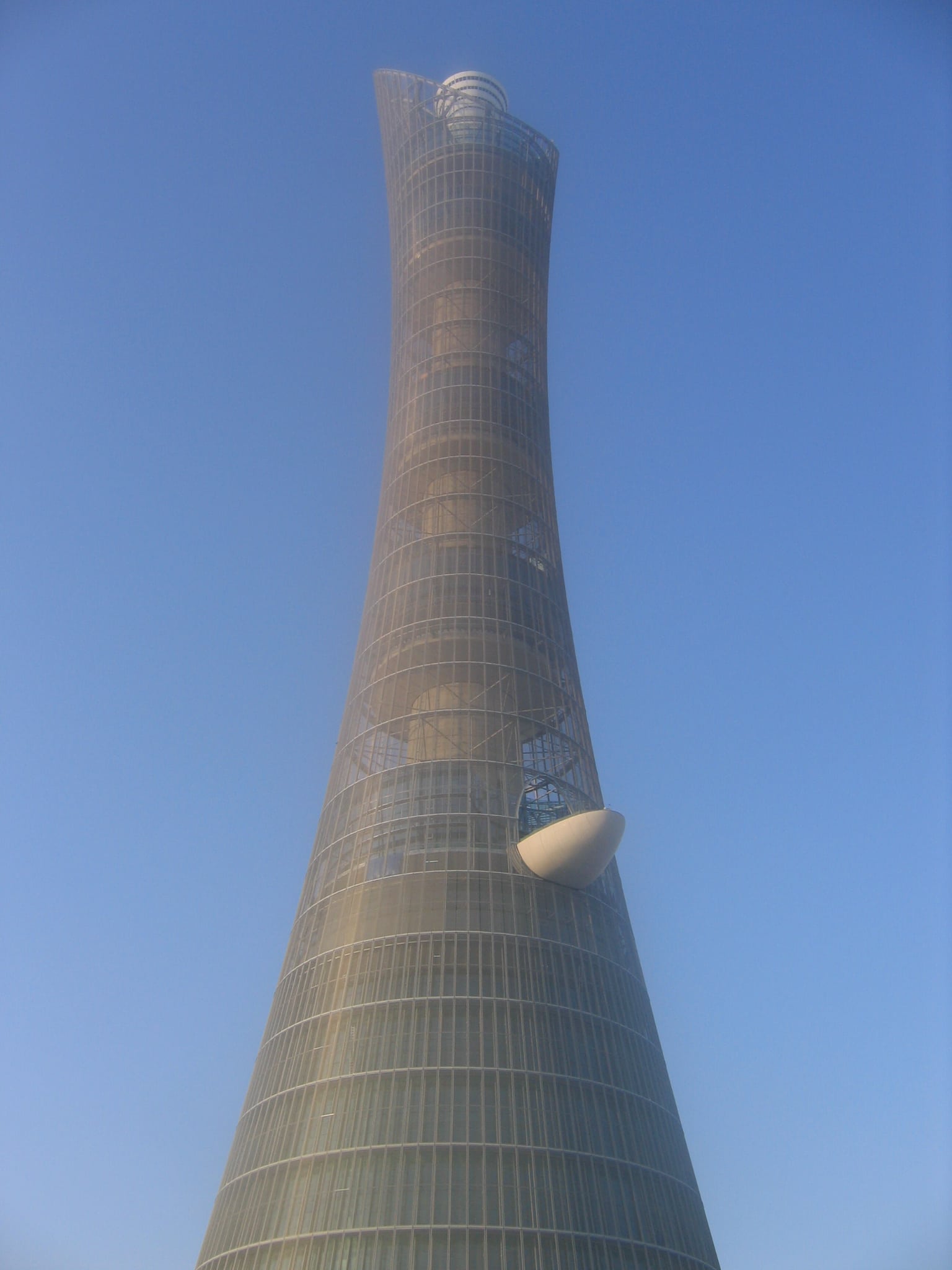

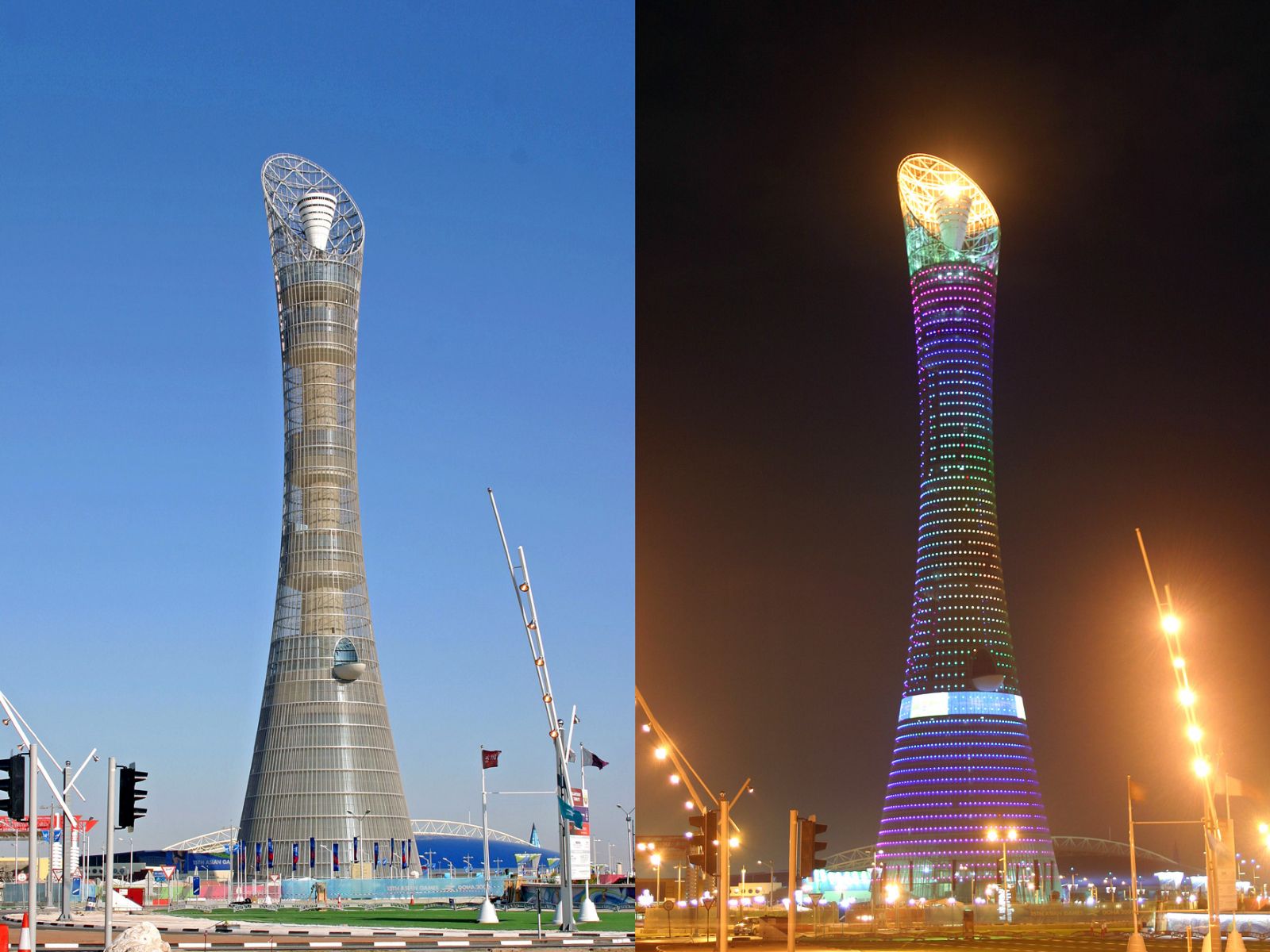

Aspire Tower at Doha

This 300-meter-high tower has been built within sixteen months.

It houses in the lower part a five-stars hotel with a swimming-pool 80-meter-high above ground level.

The other areas are located in independent blocks linked to the concrete core of the tower and consist in :

• a presidential apartment,
• a sports museum,
• a rotating restaurant,
• a panoramic platform.

The Greisch engineering office, as a partner of the Belgian company “Jungbluth Alu partners”, has designed the tower facade:

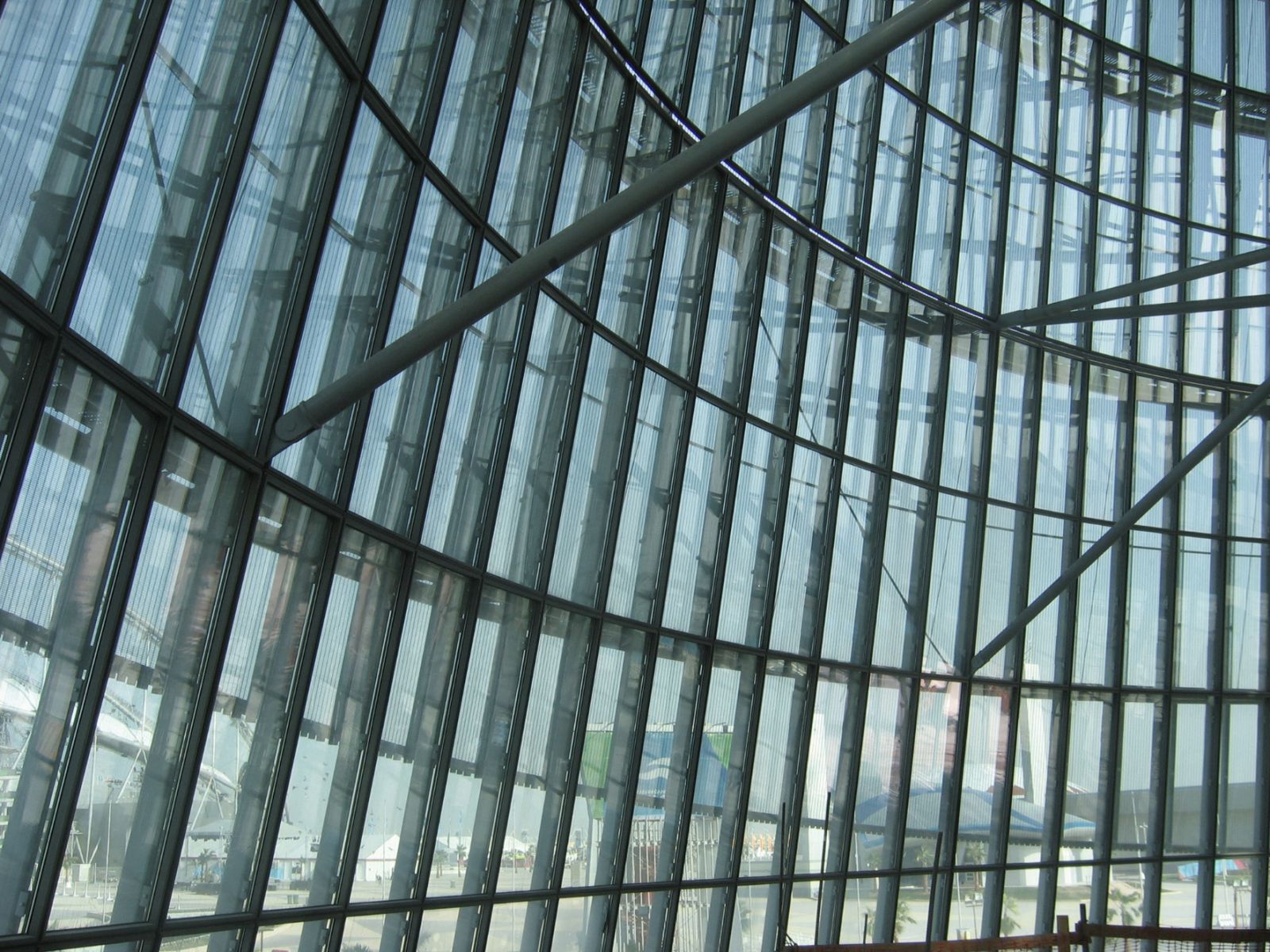

• the 70 lower meters are composed of two different constituent layers: glass and stainless-steel mesh panel;
• the whole facade is made up of stainless steel mesh panels;

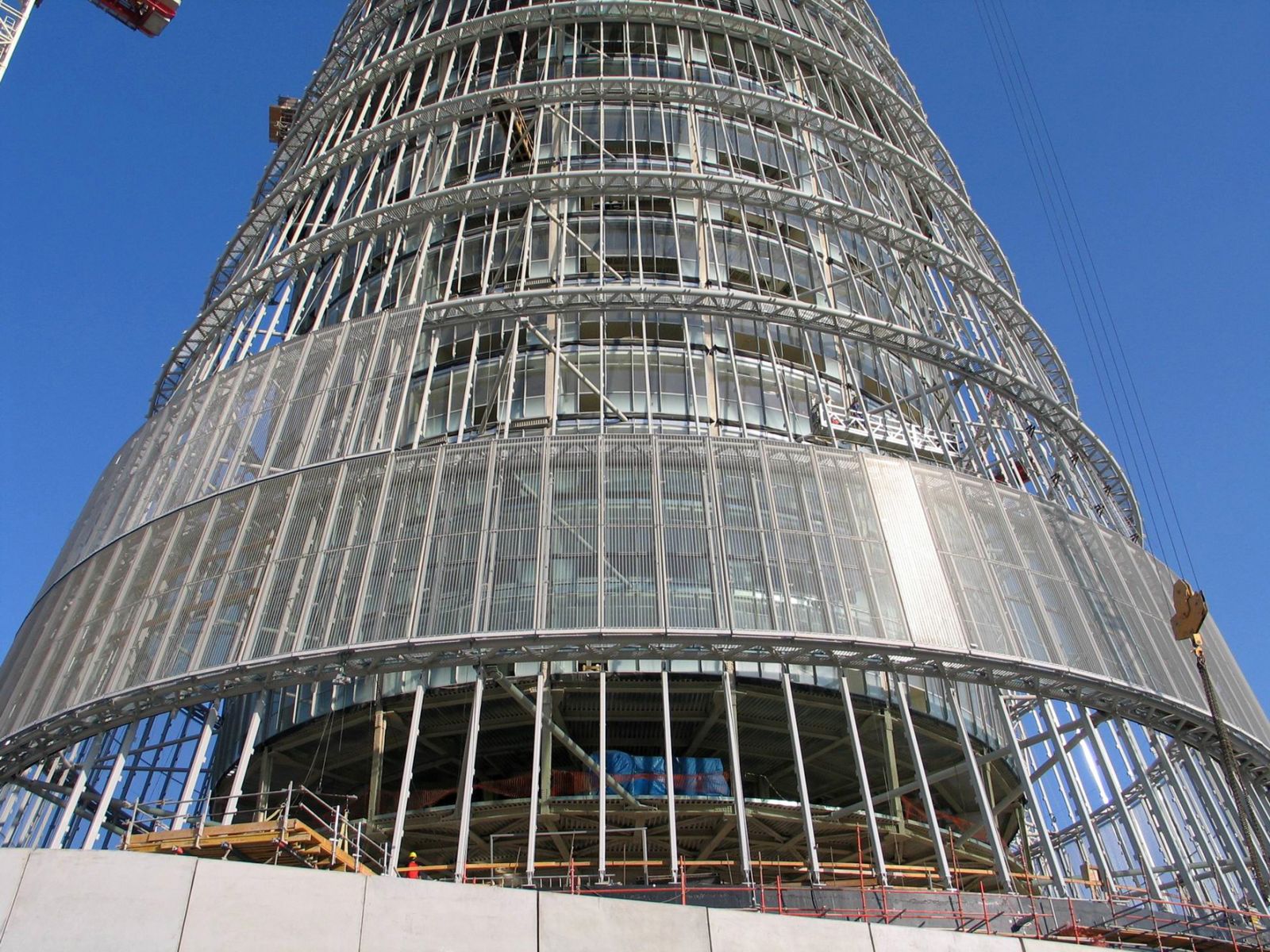

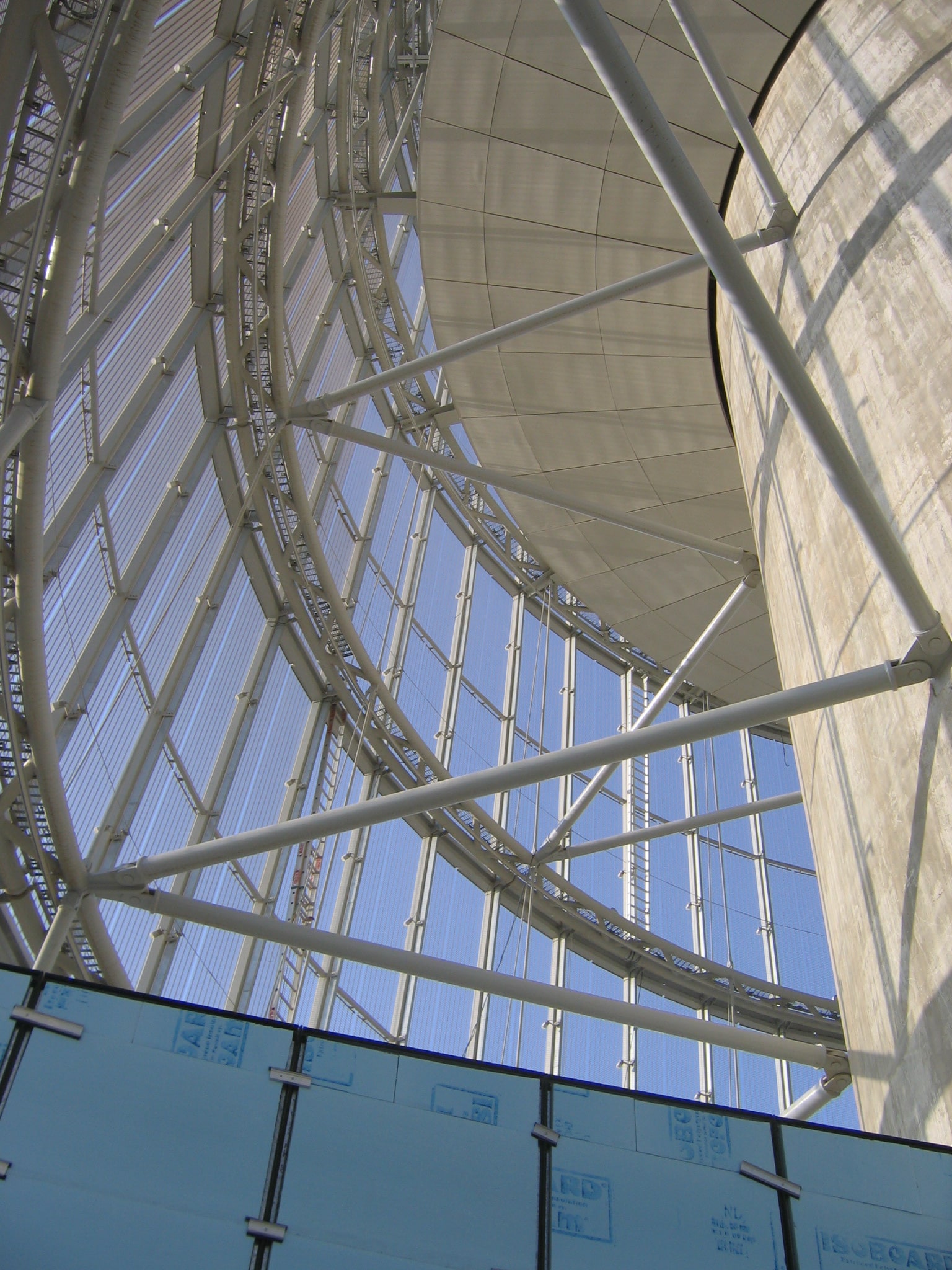

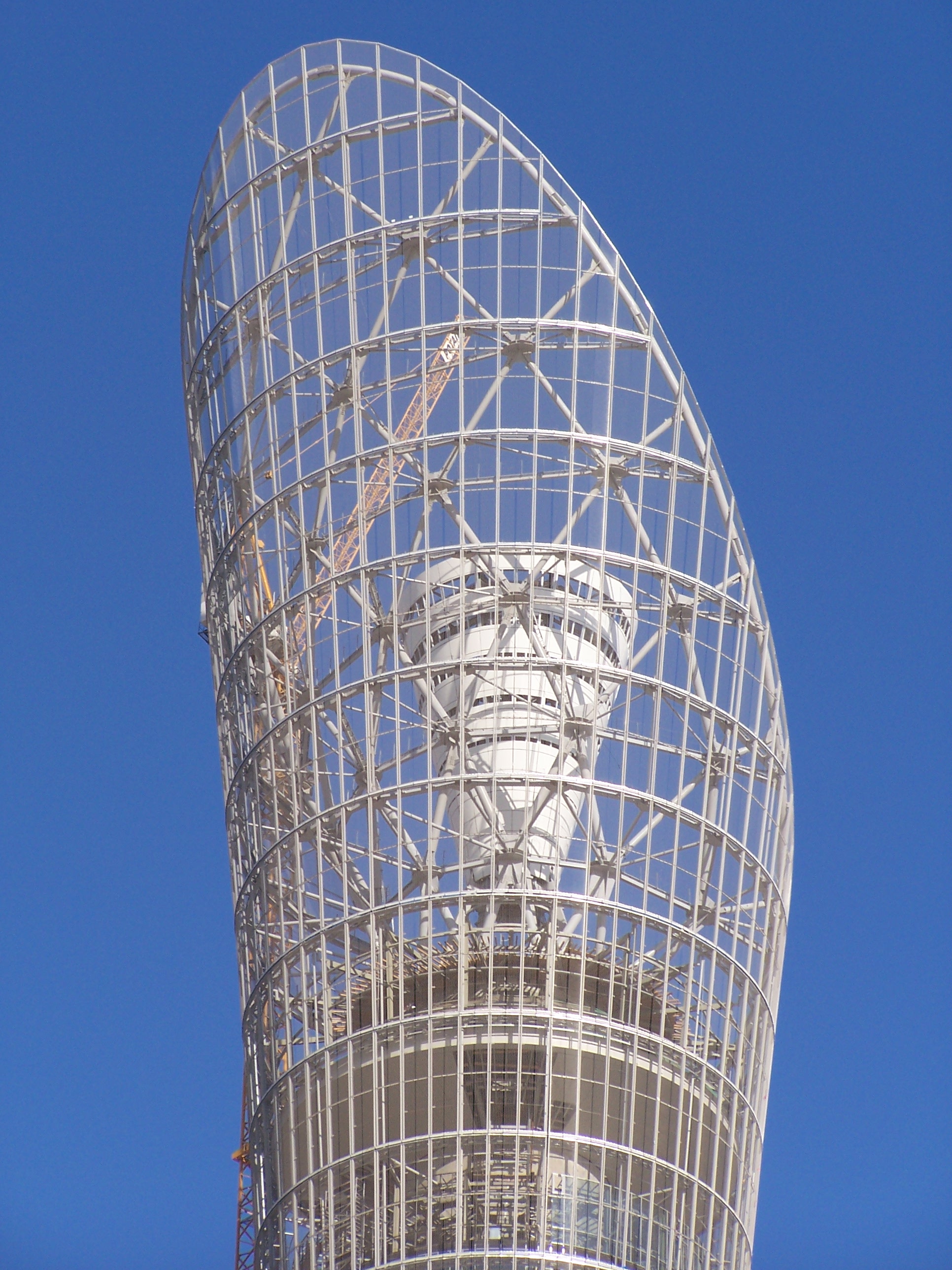

• the facade geometry is obtained by a steel structure, radial tubes and circumferential truss beams;

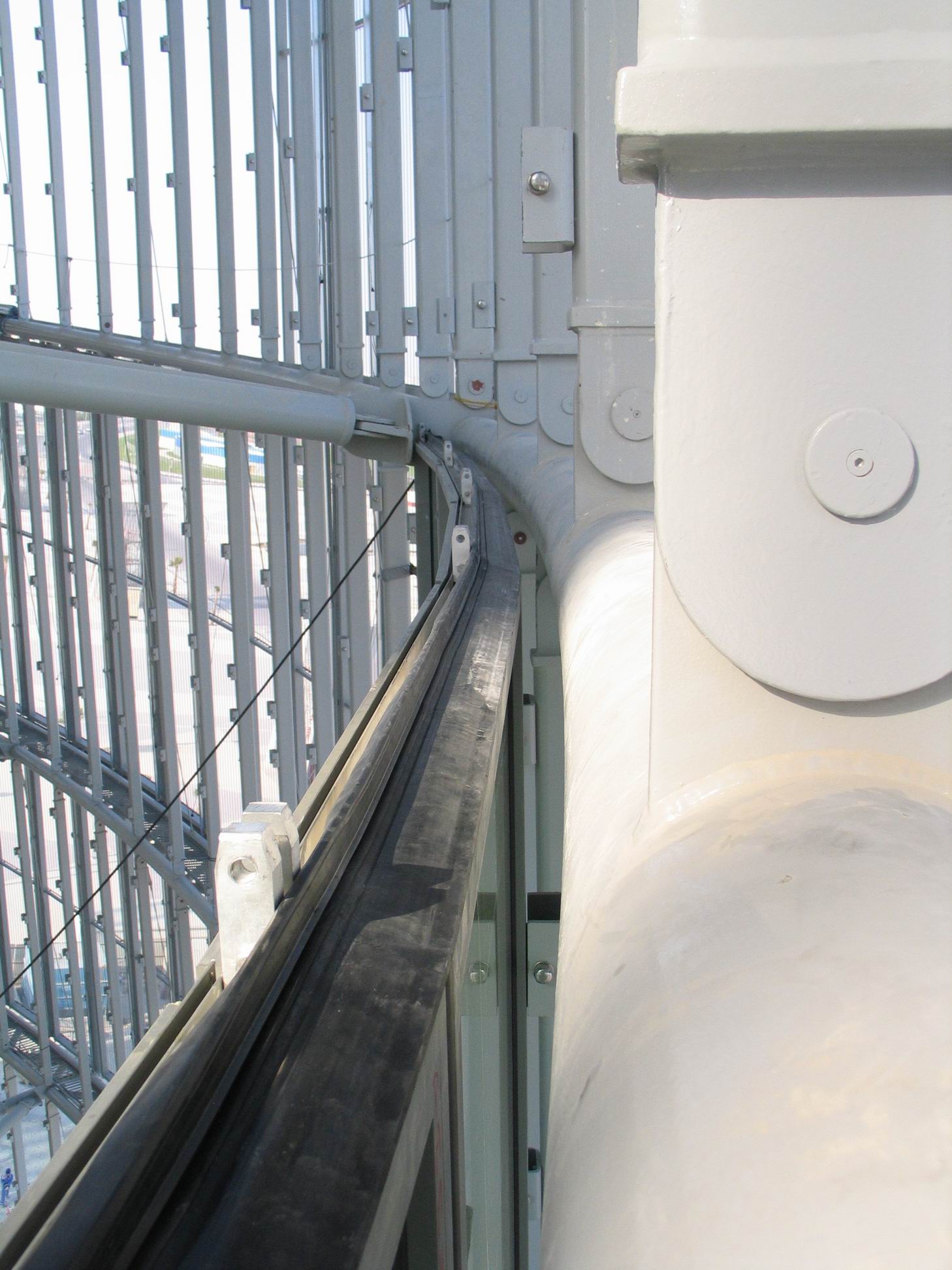

• the stainless-steel mesh panels are tensionned on individual steel frames. The frames are then hung from the truss beams;
• the whole facade is hung from the different blocks.

Facade characteristics:
– 30 000 m² stainless steel mesh,
– 10 000 m² glazing for the lobby,
– 12 000 m² glazing for the hotel and the different blocks,
– 2 200 tons of structural steel relative to the facade.
